WS2811 Addressable LED Strip Light

WS2811 Addressable LED Strip Light

WS2811 Addressable LED Strip:1.5M long with 150 pcs RGB LEDs and 50 pcs WS2811 IC which are organized in groups of 3 LEDs with 1 IC. Each group can be controlled individually. It will display much more amazing Static and dynamic color effects than regular RGB strip lights.
2.FULL COLORFUL:256 brightness display and 24-bit color display.Every 3 LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
3.HOW TO GET IT WORK: 12V power supply and controller ( not included) is required, strip12V+ /DATA/GND connected correctly then it works
Send Inquiry
Description

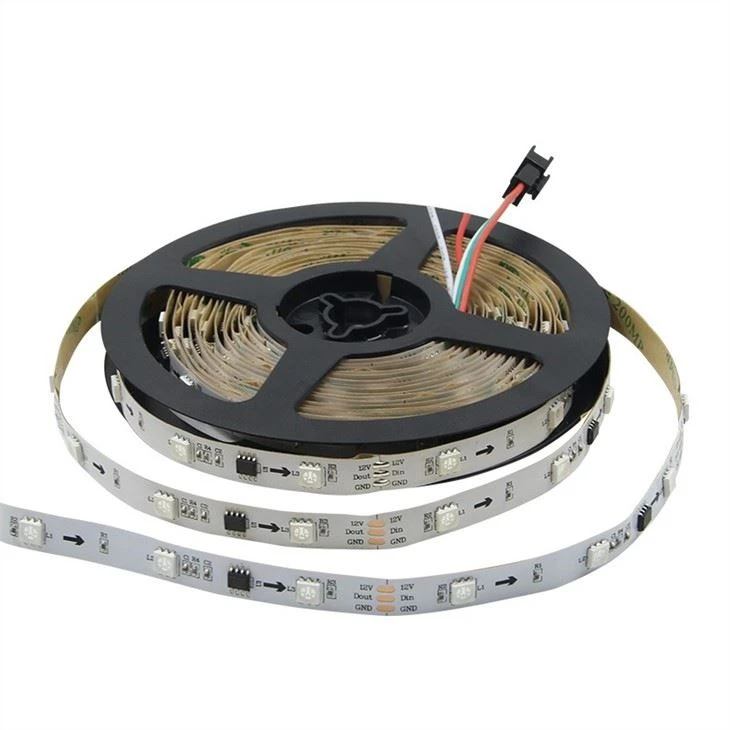

WS2811 12V Addressable RGB LED Strip Lights

WS2811 strip is low power consumption, Super-bright but running with low temperature.

And 3pcs 5050 RGB SMD with one WS2811 IC Chip realize Addressable, 3LED per cell is programmable, with 8 bits of red, green, and blue data shifted in for 24 bit color, Strips take data in green, red, blue order. Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.

Specifications

LED Chip

SMD5050 RGB LED chip

IC Chip

WS2811 IC

LED Quantity

30LEDs/m

Input Voltage

DC12V

Watts

7.2W/M

IP Rate

IP20(non-waterproof), IP65(Silicon-tube waterproof) ,ip68

PCB Color

White PCB, Black PCB

View Angle

120°

Standard Reel Length

5meter/roll, also can be customized

PCB Width

10mm

Operating Temperature

-20 ~ +40°C

Storage Temperature

-40 ~ +80°C

Color

Addressable full color

Parameter


  • Light source: 5050 RGB LED; 60 LEDs per meter; 300 LEDs per roll

  • IC Model: WS2811 IC; 20pcs per meter; 100pcs per roll

  • RGB order:BRG

  • Color Display: 24-bit full color

  • Working voltage: 12V

  • Working Power: 6A max @12V DC ; 72W per roll

  • Port scanning frequency reaches to 2KHz/s

  • Data transmitting speed is up to 800Kbps

  • Waterproof: IP65 Waterproof

  • Dimension: (L) 5000mm*(W)10mm* (T)3mm


Dimension:

3



Application:

4

· City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)

· Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV

· Establishments ceiling cavity design)

· Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)

· Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)

· Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)


Notes:


 · Using 12VDC power supply. Higher than 12V will destroy it.

  • If you need more data of WS2811 led strip, we will send it to you.

  • The LEDs at the far end of the strip might be dimmer because of the added resistance and voltage drop that occurs during the current flows to that end of the strip. The solution is adding DC12V voltage every 16.4ft or 32ft according to the actual situation .

  • LED strip is made by 50cm FPCB, so there is a solder point each 50cm(1.6FT) on strip. But this minor flaw has no any bad effect on the strip's performance. In fact, ALL the LED strips on the market are manufactured in half-meter lengths.
